Preț: Cere oferta
Software de simulare a câmpului electromagnetic
CST Studio Suite, software-ul de neegalat pentru simularea câmpului electromagnetic, care combină performanțe extinse de simulare cu o interfață avansată și ușor de utilizat. O caracteristică cheie a CST Studio Suite este abordarea Tehnologică Completă, care oferă posibilitatea de a alege simulatorul sau tipul de plasă cel mai potrivit pentru o anumită problemă, integrat perfect într-o singură interfață cu utilizatorul.
About CST Studio Suite
What is CST Studio Suite?
CST Studio Suite® is a high-performance 3D EM analysis software package for designing, analyzing and optimizing electromagnetic (EM) components and systems.
Electromagnetic field solvers for applications across the EM spectrum are contained within a single user interface in CST Studio Suite. The solvers can be coupled to perform hybrid simulations, giving engineers the flexibility to analyze whole systems made up of multiple components in an efficient and straightforward way. Co-design with other SIMULIA products allows EM simulation to be integrated into the design flow and drives the development process from the earliest stages.
CST Studio Suite is used in leading technology and engineering companies around the world. It offers considerable product to market advantages, facilitating shorter development cycles and reduced costs. Simulation enables the use of virtual prototyping.
Device performance can be optimized, potential compliance issues identified and mitigated early in the design process, the number of physical prototypes required can be reduced, and the risk of test failures and recalls minimized.
About CST Studio Suite
CST Studio Suite - Family of Solvers

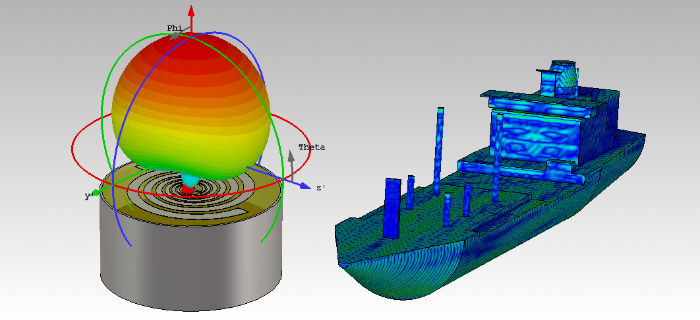

Microwave Studio
Microwave Studio includes 7 high frequency solvers, including the two general purpose solvers, the time domain and frequency domain, as well as more purpose specific solvers of Eigen, Integral, Method of Moments and Asymptotic.

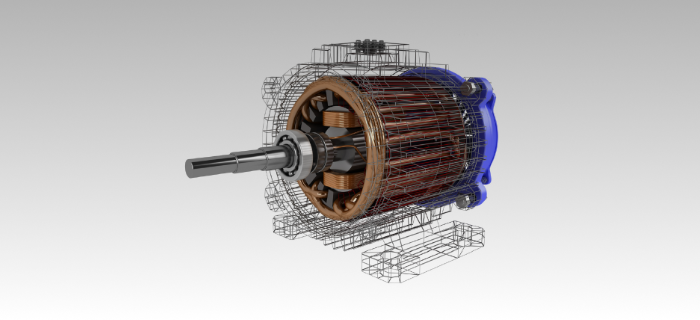

EM Studio
EM Studio for static and low frequency, including electrostatic, magnetostatic, and stationary current, and low frequency time and frequency. At the forefront of low frequency design are electric motors as well as electric generator design for water or wind turbines.

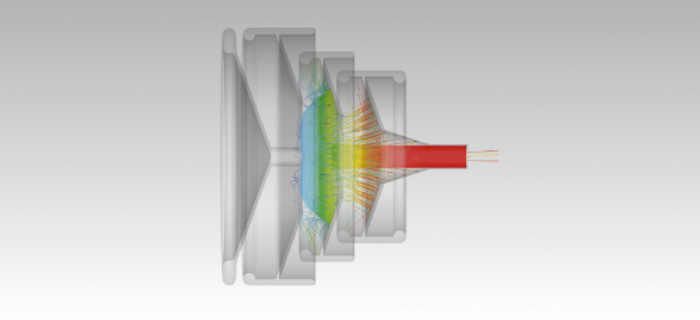

Particle Studio
Specialized solvers for the 3D simulation of electromagnetic fields interacting with charged particles, including Tracking solver for particle movement in static EM fields, Wakefield solver for particle mean excitation, Particle in cell solver for transient particle movement, and Electrostatic particle in cell for space charge vs time effects.

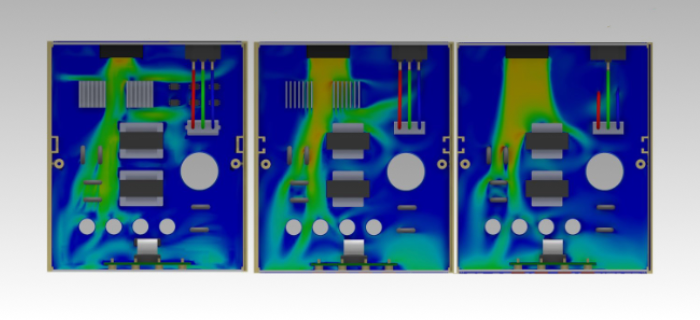

Multiphysics Studio
Set of solvers for thermal, fluid dynamics, and mechanical stress analysis. These solvers can be used in conjunction with EM simulation domains to address coupled physics scenarios.
Cable Studio
Cable Studio allows the engineer to create or import complicated cable routing nertworks, which could be used in the automotive, naval or commercial environments, including is a library of cable harness, transitions, and shielding options, and simulation results include s parameters and radiated emissions.

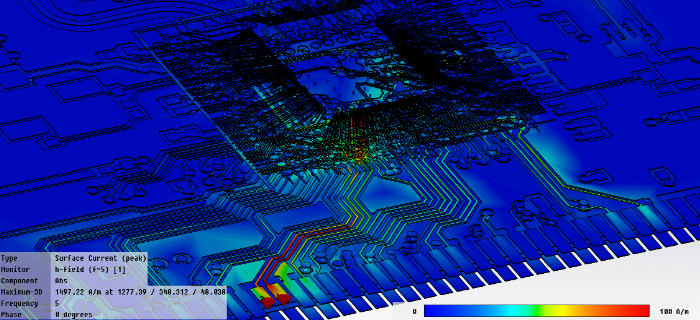

PCB Studio
Specific solvers and tasks for the investigation of signal integrity (SI), power integrity (PI), voltage drop (IR-Drop) and EMC/EMI effects for the design of printed circuit boards (PCB) and 3D chips, incorporating 3 mathematical techniques, including 2D Transmission Line, 3D Partial Element Equivalent Circuit, and 3D Finite Element Frequency Domain.

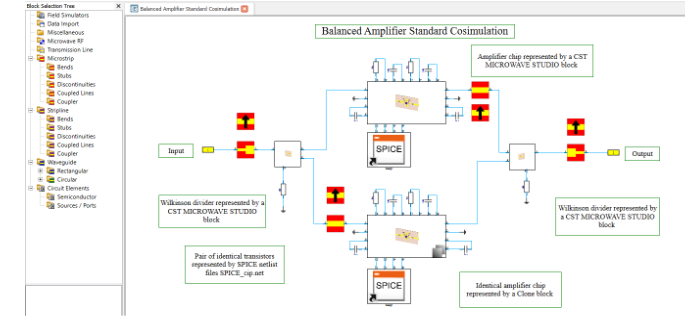

Design Studio
A schematic analysis tool for system level design, allowing the connection of different 3D projects and circuit elements (SPICE/IBIS/SNP). It is also the entry point for the System Assembly and Modeling (SAM) workflows multiple solver integration.
CST Studio Suite - Design Modules
Antenna Magus
Antenna Magus accelerates antenna design and modeling from a large antenna database of over 350 antenna designs. It includes antenna placement and antenna array analysis.
Filter Designer 3D
An advanced planar (2D) and cavity (3D) filter design synthesis design tool that supports Lowpass, Highpass, Bandpass, Bandstop and Diplexer designs. Various filter responses like the classical Butterworth, Bessel, Chebyshev I, Chebyshev II, Elliptic, Equiripple and Arbitrary filter responses.
Fest3D
An efficient analysis tool for passive components based on waveguide technology, capable of integrating high power effects in the design process.
Spark3D
A powerful numeric algorithm for predicting both corona (arcing) and multipactor breakdown, the two dominate high power effects that severely damage devices.
IdEM/IdEM Builder
Generates SPICE macromodels of electrical interconnect structures, providing accurate, proven, passive and causal broadband computational models for circuit simulation.
CST STUDIO suite
Applications
Electromagnetic Simulation Overview
Discover the power of electromagnetic simulation in optimizing designs for antennas, circuits, and electromagnetic systems.This video highlights advanced simulation tools that predict performance, reduce costs, and accelerate development across industries like aerospace, automotive, and telecommunications, ensuring precision and innovation in every project.
Electronic Design Analysis
Explore cutting-edge electronic design analysis tools that enhance performance and reliability in complex circuits and systems.This video demonstrates how advanced simulations streamline design validation, reduce development cycles, and ensure optimal functionality for applications in electronics, telecommunications, and beyond. Innovation starts with precision!
Antenna And Sensor Design And Placement Solution
Discover innovative solutions for designing and optimizing antenna and sensor placement.This video showcases advanced tools that enhance performance, ensure precise placement, and address integration challenges for industries like automotive, aerospace, and IoT, driving superior connectivity and functionality in modern systems.
Antenna Compliance Testing
Ensure your antenna designs meet regulatory standards with advanced compliance testing solutions.This video explores tools for evaluating performance, certifying reliability, and streamlining the testing process, helping industries like telecommunications and automotive achieve seamless integration and regulatory compliance with confidence and efficiency.
Filter Design
Optimize electronic systems with precision-engineered filter designs.This video highlights advanced tools for creating and testing filters that enhance signal integrity, reduce interference, and improve performance, enabling reliable solutions for telecommunications, aerospace, and other high-tech industries. Design smarter, faster, and with confidence.
3DExperience - EDA Design
Revolutionize your electronic design automation (EDA) workflow with 3DExperience.This video highlights seamless integration, collaborative tools, and advanced simulation capabilities that streamline PCB design, optimize performance, and accelerate innovation across industries like consumer electronics, automotive, and aerospace. Experience the future of EDA today!
